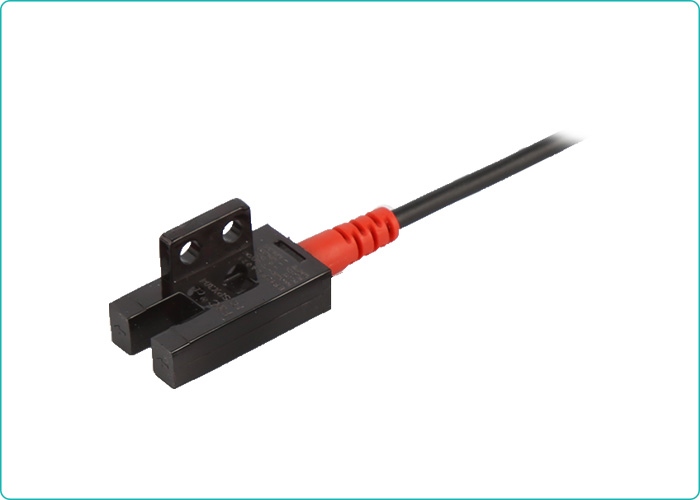

12VDC PNP NO NC 4 Wires Through Beam Photoelectric Switches

Brand Name : F&C

Model Number : FC-SPX304

Certification : CE, ROHS, ISO

Place of Origin : China

MOQ : negotiable

Price : negotiable

Supply Ability : 50000pcs per month

Delivery Time : 10days after depsite

Packaging Details : Standard Export Package

Voltage : 5V-24VDC

Detection Distance : 5mm

Output Method : PNP NO.NC

Response Time : 0.3ms Max

Operation Temp. : -10 to 60℃(No Condensation)

Protection Grade : IP66

Circuit Protection : Short-Ciruit Protection

Contact Now

12VDC PNP NO NC 4 Wires Through Beam Photoelectric Switches

12VDC PNP NO NC 4 Wires Through Beam Photoelectric Switches

Product Description
FC-SPX300 Series Photomicro Sensor has 6 different shape.
They can work well under sunshine. We manufacture 50K Pcs Per Months.

Free samples will be offered for test.

Advantages
1. Easy to install with mall volume, almost a half than others.
2. Four wires outputting, every sensor come with function of NO and NC.
3. Many other mini-type for choice.
4. LED indicator to shows working situation.
5. Stable working without influence by other light.
6. Every single products in individual package.
7. Standard 2m cable length, can customize to other cable length.

12VDC PNP NO NC 4 Wires Through Beam Photoelectric Switches

NPN NO.NC	FC-SPX302	FC-SPX303	FC-SPX304	FC-SPX305	FC-SPX306	FC-SPX307
PNP NO.NC	FC-SPX302P	FC-SPX303P	FC-SPX304P	FC-SPX305P	FC-SPX306P	FC-SPX307P
Standard Detection Object	diameter 1mm opaque objects
Repeat accuracy	0.02mm
Detection Distance	5mm
Light Source	940 nm Infrared modulated light
Operating Voltage	5V-24VDC
Response Time	0.3ms Max.
Current Consumption	15mA Max.
Load current	100mA Max at 24 VDC
Insulation Resistance	20M Ohm Min. at 500 VDC
Dielectric strength	60 seconds at 1000VAC 60HZ
Protection Degree	IP64
Operating Temperature	-10℃-50℃(No Icing)
Reverse Polarity Protection	Yes
Short Circuit Protection	Yes
Material	ABS
Wire Method	Prewired diameter 3mm*2M/- 4wires
